Product information

  • Category: RGB LED Video Wall

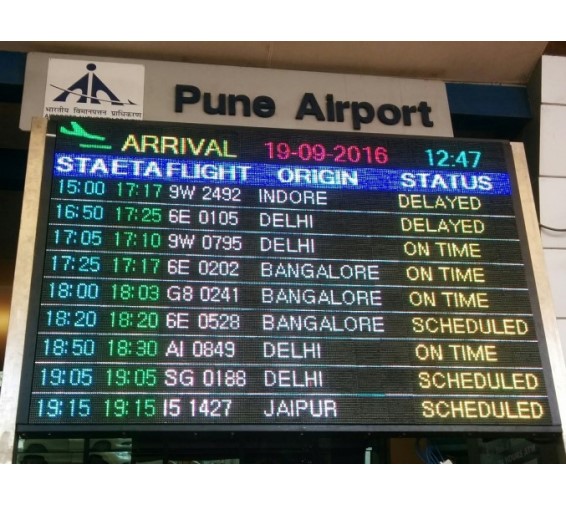

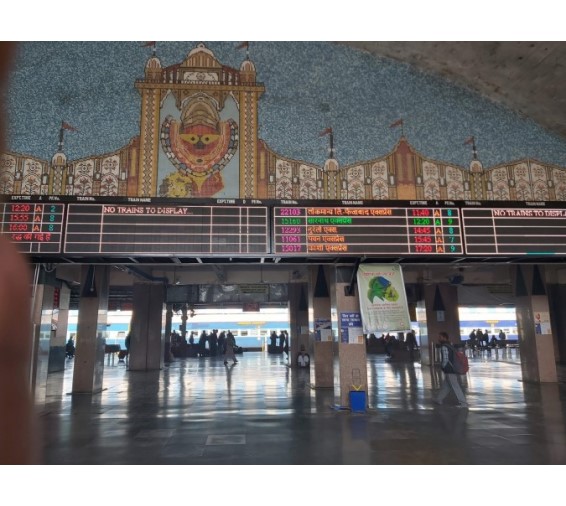

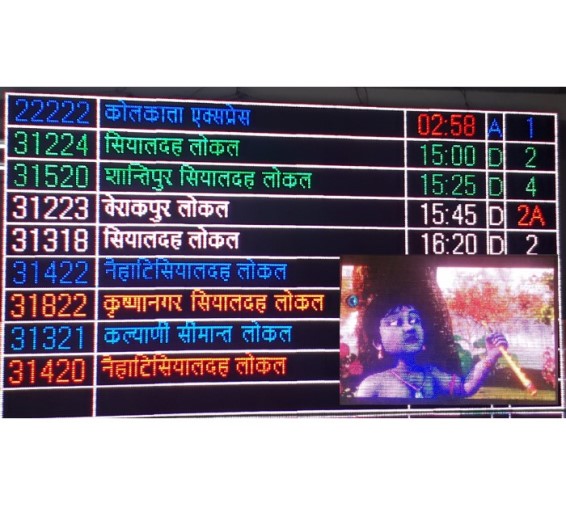

  • Client: Railways & Airport
  • Railway Stations: 500+
  • Airport Terminal: 50+

Patented RGB Video wall solution

EDS-India has the patented technology for True color RGB Video Wall Solution.

LED VIDEO WALLS

Features

Display P16 Outdoor P10 Outdoor P10 Indoor P7.5 Indoor P6 Indoor
Pixel Pitch 16 10 10 7.5 6
Pixel Density 3906 10000 10000 17777 27556
Pixel Configuration 1R 1G 1B 1R 1G 1B 3-In-1 RGB SMD 3-In-1 RGB SMD 3-In-1 RGB SMD
LED Life 100000 HOUR
Module Dimension (mm) 1280 x 1280 960 x 960 960 x 960 144 x 128 768 x 576
Module Weight (Kg) 50 45 38 42 26
Power Consumption (W) / Module 1000 800 580 640 450
Input Power 130V AC To 270V AC
Best Viewing Distance (Feet) 16 10 10 8 6
Viewing Angle 110° Horizontal 60° Vertical
Brightness (NIT) 12000 9000 6000 7000 2500
Operating Temperature 0°C - 80°C 0°C - 80°C 0°C - 70°C 0°C - 70°C 0°C - 70°C
IP Grade IP65(Back)/ IP66(Front) IP65(Back)/ IP66(Front) IP54(Back)/ IP54(Front) IP54(Back)/ IP54(Front) IP65(Back)/ IP65(Front)
Scanning 1:4 1:4 1:8 1:8 1:16

Device USP

  • Completely Indigenized Indian Design (Patented*)
  • Highly Modular
  • Digital Intensity & Contrast Control
  • PWM based Drive technology to improve LED life span
  • Lowest Power / Sq Meters
  • Inbuilt Soft start to limit in-rush current and provide stable operation over life
  • Temperature Controllerd Force cooling for increased life of cooling fans.

Technical Secification

Paramaters Ratting
Power Input 130V AV to 3270V AC
CPU ARM Cotex-M4 @180Mhz
External Memory 16 MB Flash
Wired Communication Ethernet / LAN

LED VMS Controller

Single Color LED VMS Controller

LED Variable Message Sign

Features

Paramaters LED VMS Controller
Input Power 5V DC
Operating Temperature -20°C ~ +85°C
Storage Temperature -40°C ~ +85°C
Supported LED Matrix 192 x 128
Supported Scanning 1:4
Refresh Rate Upto 700Hz
CPU ARM Cortex M4 @ 180MHz
Internal Flash Upto 1MB/td>
Internal RAM Upto 256 KB
External Flash Upto 64 MB
Wired Communication 10/100/1000 MBPS LAN
Wireless Communication Wi-Fi, GPRS

Controller USP

  • Single Control Card to drive 192x128 LED matrix.
  • 1:4 scanning rate with up to 700 Hz refresh rate.
  • Supported communication – LAN / Wi-Fi or GPRS
  • Internal System Memory – 1MB, Storage Memory – 16 MB, SRAM – 256 KB
  • Remote debugging to diagnose problems remotely.
  • Smart self diagnostic feature.
  • Remote control for display ON/OFF.
  • FOTA (firmware updating via GPRS).
  • Can pick images/data from any TCP/HTTP/FTP servers via LAN / Wi-Fi / GPRS.
  • Multiple display effects.
  • Auto / manual paging.
  • Directivity – 90°(H) 45° (V)
  • Visibility – 50 Meters or more
  • Brightness > 5000 NIT
  • LED life – 100000 Hours

Technical Secification

Paramaters Ratting
Power Input 5V DC
Current Consumption Normal ~ 80mA; Peak ~ 500A
Operating Temp (Storage Temp) -20°C to +85°C (-10°C to +85 °C)
CPU ARM Cotex-M4 @180Mhz
External Memory Upto 64MB Flash
GSM /GPRS MODEM 850/900/1800/1900 MHz Quad Band, Multi Slot (12/10/8), Class B GPRS Module
GSM Antenna Internal
